P-500

Intelligent Walk Away Chemistry

download pdf

download pdf

Pictus 500

Pictus 500

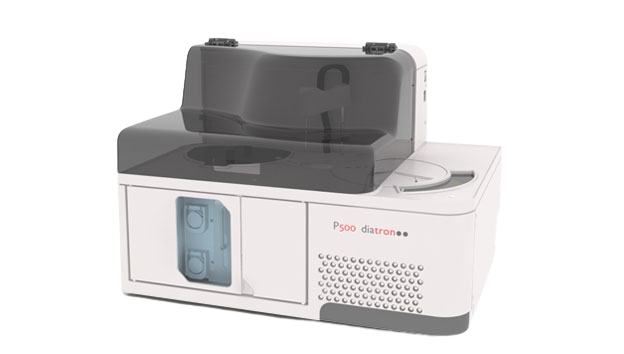

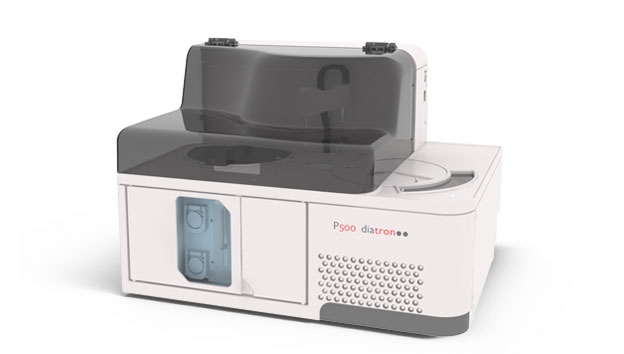

The P500 is a bench top, fully automated Clinical Chemistry system with a throughput of up to 340 routine chemistry and 180 ISE tests per hour, state of the art components and user-friendly interface provide a long life platform for analytical excellence. The system includes a full range of reagents, controls and calibrators.

Key Features And Benefits

  • Intelligent software
  • High quality components

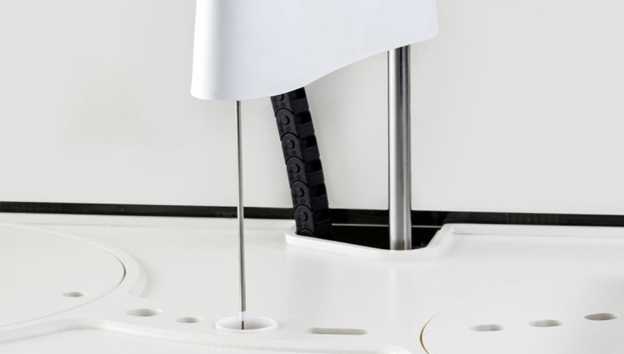

  • Multi-functional pipetting arm
  • User friendly interface
  • Uninterrupted workflow
  • Inventory management
  • Remote access & diagnostics
  • Cost effective operation

    • Specifications

  • Throughput (tests/hour) Up to 340 tests/hour mono reagent
  • ISE: Up to 180-240 tests/hour

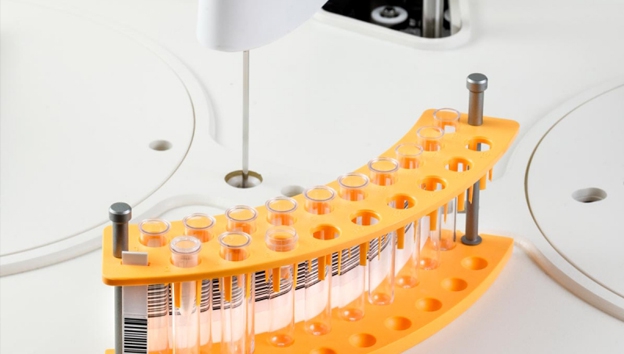

  • Sample Racks/Positions per rack: 5 / 19
  • Samples on-board capacity: 95
  • Sample volume (μL): 2 - 200
  • Optional direct 4-ISE module
  • Reaction volume (μL): 180 - 650

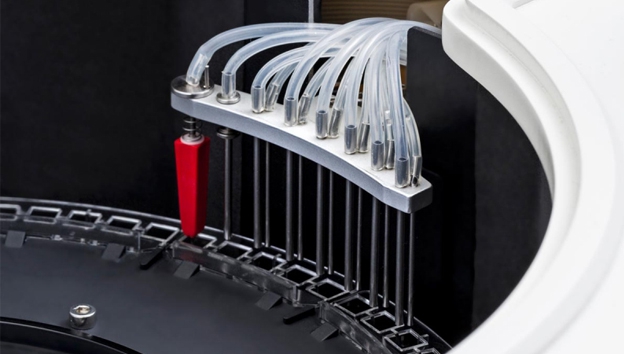

  • PMMA reusable/single use cuvettes on board (in segments of five): 80
  • Time to first result (seconds): 45
  • Serum, plasma, urine, CSF and other sample types can be used

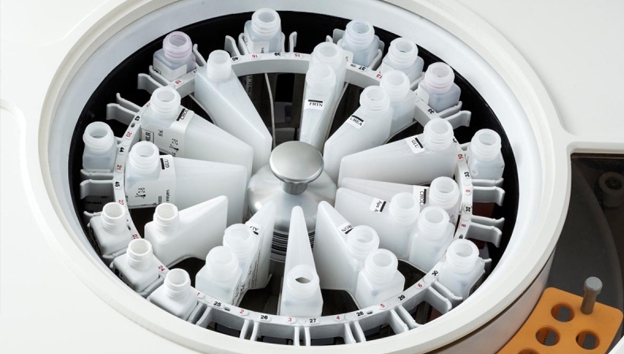

  • Refrigerated reagent tray: 8+/- 2 ⁰C
  • Refrigerated on-board single reagents/tests: 72
  • Water Consumption: up to 2 l/h
  • Up to 3 different reagents per test
  • Internal Barcode Reader for samples, sectors and reagents
  • Crash and collision detection
  • Reagent pre-heater
  • Clot detection
  • QC: Graphical and statistical; Westgaard rules indicated
  • Levey-Jennings plots, twin QC and box whisker plots
  • Weight: 115 kg, 253 lbs
  • Dimensions (Width x Depth x Height): 88 cm x 70 cm x 66 cm, 34.6" x 27.6" x 26"

    • Options

  • Optional direct 4-ISE module
  • Optional stand/cabinet
  • Optional auto fill / drain unit for system wash & waste
